Duratec HE

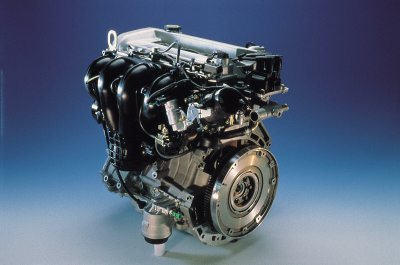

The Duratec HE was the world debut of the new inline in the all new Mondeo MK-2. The duratec HE has all the higline fetures that all future ford engine will have. Including the Visteon- Levanta 32 bit, " Black Oak Module". Levanta's power allows for higher compession ratios (10.8:1) for more power without the use of high octane gas, the Black oak moduale is a standalone ECU that works with the EEC V ECU. Levanta allows for the eventual use of VVT, electronic throttle control, and Direct injection, in additon to the electronic thermostat, knock sensors, smart chraging and variable intake runners. The technology works very well, and whenever the Direct injection model arrives expect the exceptional power to increase and economy numbers to improve by 30% in city use.

1.8l Duratec HE
125 hp @ 6000 rpm
125lb/ft @ 4800 rpm
>41mpg Hwy.

2.0 Duratec HE
145 Hp @ 6000 Rpm
140 lb/ft @ 4800 rpm
40 mpg hwy.

More Duratec HE pics


Below are Ford technical releases. The first one has all the high points of the motors, and the second one has the tech numbers for the engines.







The new 16-valve Ford Duratec HE four-cylinder petrol engine is ready to take on the world.
Representing a clear step forward in many areas, it is the result of the largest-scale engine development
program in the history of Ford Motor Company.

Lightweight and compact, the new aluminum Duratec HE has been designed specifically to provide
customers with dependable performance and high levels of driving quality throughout its life.

Maximizing power output was not the primary goal for the Duratec HE engineering team. Rather, they
adopted a more contemporary approach, focusing on clear customer wants - rewarding performance feel
and effortless driveability, combined with outstanding fuel economy, smooth operation, and a
long, reliable service life with low maintenance requirements.

Part of this approach was to ensure that new Mondeo drivers choosing the Duratec HE will feel like they
have a larger-displacement engine, until it comes to filling up the petrol tank. Innovations in the engine
design have produced the performance feel of a larger powertrain - especially in normal urban driving.

Above all, the debut of the Duratec HE engine family in the Ford Mondeo signals a new chapter for
Ford's powertrain engineers.

"The new Duratec HE engine is the cornerstone of our long- term petrol engine strategy, and it is the
result of an intensive process to develop a new range of powertrains that are absolutely on the
technological edge," said Prof. Dr. Rudolf Menne, the Duratec HE engineering director. "It will find a
home in a whole range of vehicles, starting with the new Mondeo."

Choice


Mondeo's Duratec HE powertrains deliver strong and balanced levels of power and torque, each with a
high level of fuel economy. Mondeo customers will have a choice of three two Duratec HE engines:

The core 1.8-litre engine, which delivers 110 PS (83 kW) at 6,000 rpm and maximum torque of
165 Nm at 3,950 rpm, while achieving European driving cycle fuel consumption ratings, in litres
per 100 kilometres, of 11.3 city/5.6 highway/7.7 combined. Combined CO2 emissions are 185
grams per kilometre.

The higher-output 1.8-litre variant, which achieves 125 PS (92 kW) at 6,000 rpm and maximum
torque of 170 Nm at 4,500 rpm. Its European driving cycle fuel consumption ratings are 24.7mpg
(11.4l/100km)urban/49.6mpg (5.7l/100km) extra urban/36.2mpg (7.8l/100km)combined, and CO2
output (combined mode) is 188 grams per kilometre.
are 11.4 city/5.7 highway/7.8 combined in litres per 100 kilometres. CO2 output (combined mode)
is 188 grams per kilometre.

The 2.0-litre engine that delivers 145 PS (107 kW) at 6,000 rpm and maximum torque of 190 Nm
at 4,500 rpm. European driving cycle fuel consumption is rated in litres per 100 kilometres at 11.6
city/5.9 highway/8.0 combined, at 24.4 (11.6l/100km)urban/47.9mpg (5.9l/100km) extra
urban/35.3mpg (8.0 l/100km)combined. while combined CO2 emissions are 193 grams per
kilometre.

With all variants, more than 90 per cent of peak torque is available across the broad rev band
between 2,000 and 6,000 rpm, and the entire Duratec HE range is capable of meeting the requirements of
the stringent European Stage IV emissions standards due to take effect in 2005.

Robust solutions from innovative engineering


How to get more from less was absolutely key to the development of the Duratec HE engine for the new
Mondeo. The objective for the Duratec HE engineering team was to give customers more of what they
want - performance, driveability and smoothness - for less fuel expense, lower emissions and minimal
maintenance requirements.

The performance feel and driveability of the new 2.0-litre Duratec HE - which behaves more like a
2.5-litre engine when pulling away - is a testament to the results of the development effort and attention
to detail for this all-new engine family from Ford.

Ambitious targets like this drove Ford powertrain engineers to focus extensively on the new engine's
intake system. Using an array of powerful CAE tools, engineers compared various options until they
found the smartest solution - a sophisticated new friction-welded nylon intake manifold with equal length
runners, featuring devices called charge motion control valves or 'tumble flaps.' The nylon used in its
construction is generated from part-recycled material.

The key to the equal length design was to improve engine sound quality by emphasizing the even-order
engine harmonics.

The tumble flaps are fitted in each of the intake runners close to the cylinder head flange. Controlled by a
solenoid actuator, they are closed during light-load operations, such as idling at traffic lights, shifting
actions and deceleration, to maximise combustion efficiency, fuel economy and emissions performance.
The valves are fully open during higher load conditions to maximise volumetric efficiency and power
output.

The key to the equal length design was to improve engine sound quality by emphasizing the even-order
engine harmonics.

The Duratec HE's optimised intake manifold is further enhanced by the careful design of the air cleaner
system. Featuring a performance-tuned, bell-mouthed, cold-air pickup duct at the very front of the
vehicle, a large NVH-tuned resonator in the wheel-arch and 'organ pipes' designed to selectively feed
back sporty sound to the driver under high throttle conditions. The system does much more than simply
clean the air.

Another critical element is Duratec HE's water-cooled, electronically operated exhaust-gas recirculation
(EGR) system to reduce NOx emissions and further enhance fuel economy. Actuated by a stepping
motor, the EGR valve precisely redirects exhaust gas to the intake side of the engine, where it is inducted
into the intake manifold via a short duct. The EGR passage is cast into the cylinder head.

Duratec HE's fabricated stainless steel exhaust manifold design of welded tubes contributes to quick
warm-up efficiency. The stainless steel exhaust manifold also delivers low-heat retention in normal
operation versus a conventional cast iron construction. This concept of heat management allowed Ford to
simplify the rest of the exhaust system and eliminate the need for a close-coupled catalyst on all manual
transmission models. The elimination of the close-coupled catalyst helps improve real-world performance
and high speed fuel economy.

In addition to the fabricated stainless steel manifold and underfloor catalyst, the muffler system has been
re-engineered with high quality stainless steel materials for extended service life, and has been tuned for a
sporty sound quality under high-load driving conditions.

Duratec HE's debut in the new Ford Mondeo also marks the appearance of a new engine management
computer module from Visteon-Levanta. Reflecting the quick advances in the computer industry, its
speed and capacity is more than double that of its predecessor. At its heart is a 32-bit Motorola MPC555
microprocessor. The system works via a CAN-bus to the chassis controls for intelligent vehicle dynamics
features such as anti-lock braking and traction control.

The speed and capacity of the new electronics gave Ford the ability to fine tune the engine's performance
with more extensive and sophisticated algorithms developed with the use of state-of-the-art, real-time
simulation tools. A side benefit of the system's new speed is that some of the complexity of the control
system required for optimal fuel economy and emissions could be simplified.

During the engine's development, extensive use was made of transient powertrain dynamometeres
operated under hot and cold conditions. These test beds helped engineers to simulate real world
environments ranging from the cold of a Finnish winter to the afternoon heat in a desert.

Ford's Engine Development Centre in Dunton, EnglandEssex, played a leading role in this
climate-controlled testing. Duratec HE cold-start calibration work, previously requiring vehicle testing in
winter environments, was done in the Dunton laboratories.

Duratec HE also pioneers an electronic thermostat which contributes positively to both fuel economy and
wide-open-throttle performance. Unlike traditional thermostats which open at one temperature threshold,
the electronic thermostat is capable of opening at two temperature thresholds. An opening temperature of
about 80ºC contributes to full-throttle performance, while a higher opening threshold of 98ºC optimises
low-friction operation under normal driving conditions.

Lightweight aluminium construction


The new Duratec HE is 18 kilograms lighter than the Zetec E engine it replaces. The lower weight, which
pays off in terms of performance and fuel economy, is the result of its all-aluminium alloy construction.

The Duratec HE features a precision gravity sand-cast cylinder block of high-grade aluminium alloy with
cast-iron cylinder sleeves cast directly into the block. The block construction features a deep skirt and
longitudinal aluminium bearing assembly. An aluminium alloy ladder-frame structure, which carries the
bottom bearing races, mates to the block for optimised stiffness, and a ribbed aluminium oil pan further
complements Duratec HE's stiffness properties and contributes to quiet operation.

The nodular cast iron crankshaft requires only four counterweights, another weight-saving feature.
Sinter-forged connecting rods with fraction-split big ends for precision fit are mated with coated,
lightweight alloy pistons. The fire land height of the pistons is 4.5 mm above the topmost piston ring,
which reduces hydrocarbon emissions. All three rings are optimised for low friction operation.

Cylinder head construction is of aluminium-silicon alloy - thermally treated for strength and durability
after the casting process - with an assymmetrical, four-valves-per-cylinder design. Two inlet valves
(32.5 -mm for the 1.8-litre; 35 mm for the 2.0-litre) are positioned at 19 degrees, and the two exhaust
valves (28 mm and 30 mm, respectively) are positioned at 10 degrees.

The double overhead cams are driven by a silent chain drive, actuating the valves via mechanical tappets.
Unlike previous-generation Ford engines, the tappets are precision-fit during assembly and require no
shimming.

Displacement variations for Mondeo's Duratec HE engines are achieved by increasing bore size (87.5 mm
for the 2.0-litre versus 83.0 mm for the 1.8-litre) while keeping the common stroke length of 83.1 mm.

Refined Operation


Mondeo's Duratec HE engines represent a considerable step forward in terms of refinement and NVH
reduction, and the result is smooth, quiet operation even during spirited driving.

The engine is mounted in the Mondeo via a three-point torque-roll-axis (TRA) mounting system. This
system, pioneered in the Fiesta and Focus, supports the engine with two load-bearing mounts along its
roll axis, one of which incorporates a hydraulic damping element to reduce powertrain shake on rough
roads and reduce transmitted vibrations. A third bushed link from the transmission case to the subframe
provides rigid resistance to torque. TRA's philosophy of separating the two primary forces on the engine
mounting system leads to a reduction in powertrain vibration and harshness.

Other refinement measures include:

A dual-mass flywheel, which is fitted to the Duratec HE variants for improved smoothness and
refinement throughout the engine speed range.

The rigidity of the engine block facilitates a stiff mounting of the transmission, which helps
tremendously to minimise vibrations induced into the body, even at maximum engine revs.

The crankshaft drive was designed with careful attention to reduce shaking forces, and the result
is a more than 10 per cent improvement over the predecessor engine.

The camshaft drive chain contributes to lower noise reflection compared to previous conventional
roller chain designs.

The G-rotor oil pump, mounted in the engine block, is driven by a separate chain.
The engine top cover provides more than an enhanced appearance. It has been acoustically tuned
to provide improved high-frequency radiated noise.

Designed for long running life and low maintenance


The design of the new Duratec HE engine incorporates the latest measures for long service life and lower
maintenance requirements:

Smart Charging, a battery current control feature driven by the engine electronic control module
monitors the charge state of the battery, and can adjust or interrupt current flow into the battery.
By keeping the charge of the battery within an optimal range, Smart Charging reduces the average
battery temperature and contributes greatly to the battery's life span. The system also facilitates
precise idle control, and even raises the idle speed to prevent battery drain in winter conditions and
in other instances of high current demand.

The chain drive requires no maintenance over the life of the engine.

During scheduled maintenance, the valve lash no longer requires inspection. This has been
accomplished through the reduction of actuating forces through weight optimisation of such
elements as the valves and tappets; optimised cam contouring to avoid excessive contact forces,
and the selection of optimal geometry and materials for moving parts and valve seat rings. Such
attention to detail helps to bring down the lifetime maintenance cost for the owner.

Duratec HE engines feature oil service intervals of 12,500 miles (20,000 kilometres.)






|


Powertrain
1.8L FORD DURATEC HE – 125 PS

Engine Data

Engine Type
1.8L 16V DOHC Petrol
Displacement (cc)
1798
Bore (mm)
83.0
Stroke (mm)
83.1
Fuel type, grade
Unleaded petrol, 95 (RON)
Max power (ISO kW/PS)
92 / 125
At engine speed (rpm)
6000
Max torque (ISO Nm)
170
Max BMEP (ISO kPa)
1188
At engine speed (rpm)
4500
Compression ratio
10.8:1
Cylinders
4, in line, with exhaust manifold to rear
Cylinder head Precision sand-cast aluminium alloy with sintered valve guides and seats
Cylinder block Precision sand-cast aluminium alloy with deep skirt and bearing beam
Crankshaft Cast iron with 47mm-diameter crankpins, four counterweights, five 52mm-diameter main bearings and damped front pulley
Valves per cylinder
4
Valve gear
DOHC with direct-acting mechanical shimless tappets
Included angle between valves
29 degrees
Valve sizes (mm)
Intake: 32.5

Exhaust: 28.0

Camshaft drive
Silent inverted-tooth chain with hydraulic tensioner
Pistons
Lightweight, short-skirt silicon-aluminium alloy
Connecting rods
Sinter-forged steel with fracture-split big ends
Engine management 32-bit Visteon Levanta with CAN-Bus and individual cylinder knock control
Fuel injection
Sequential electronic fuel injection (SEFI)
Ignition
Electronic distributorless
Emission controls Underfloor closed-loop three-way catalyst with oxygen sensor
Emission level
European Stage IV capable, with electronic on-board diagnostics (EOBD)III


2.0L FORD DURATEC HE – 145 PS

Engine Data

Engine Type
2.0L 16V DOHC Petrol
Displacement (cc)
1999
Bore (mm)
87.5
Stroke (mm)
83.1
Fuel type, grade
Unleaded petrol, 95 (RON)
Max power (ISO kW/PS)
107 / 145
At engine speed (rpm)
6000
Max torque (ISO Nm)
190
Max BMEP (ISO kPa)
1194
At engine speed (rpm)
4500
Compression ratio
10.8:1
Cylinders
4, in line with exhaust manifold to rear
Cylinder head Precision sand-cast aluminium alloy with sintered valve guides and seats
Cylinder block Precision sand-cast aluminium alloy with deep skirt and bearing beam
Crankshaft Cast iron with 47mm-diameter crankpins, eight counterweights, five 52mm-diameter main bearings and damped front pulley
Valves per cylinder
4
Valve gear
DOHC with direct-acting mechanical shimless tappets
Included angle between valves
29 degrees
Valve sizes (mm) Intake: 35.0

Exhaust: 30.0

Camshaft drive
Silent inverted-tooth chain with hydraulic tensioner
Pistons
Lightweight, short-skirt silicon-aluminium alloy
Connecting rods
Sinter-forged steel with fracture-split big ends
Engine management 32-bit Visteon Levanta with CAN-Bus and individual cylinder knock control
Fuel injection
Sequential electronic fuel injection (SEFI)
Ignition
Electronic distributorless
Emission controls Underfloor closed-loop three-way catalyst with oxygen sensor (manual transmission models); Close-coupled and underfloor closed-loop three-way catalysts with oxygen sensor (automatic transmission models)
Emission level
European Stage IV capable, with electronic on-board diagnostics (EOBD)III


Pistons Lightweight aluminium silicon alloy with low-friction molybdenum coated skirts and pressure-balanced ring pack
Connecting rods Sinter-forged with fracture-split big ends and wedge-profile small ends
Engine management
32-bit Visteon Levanta with CAN-Bus
Fuel Injection
Direct, Bosch VP30 axial piston fuel pump with pilot injection
Turbocharger
Allied Signal GT 20/17V with intercooler
Emission controls
EGR and oxidation catalyst
Emission level
European Stage III


2.0L FORD DURATORQ DI TURBODIESEL – 115 PS

Engine Data

Engine Type
2.0L Ford Duratorq DI 16V Turbodiesel
Displacement (cc)
1998
Bore (mm)
86.0
Stroke (mm)
86.0
Fuel type, grade
Diesel
Max power (ISO kW/PS)
85 / 115
At engine speed (rpm)
4000
Max torque (ISO Nm)
280
Max BMEP (ISO kPa)
1761
At engine speed (rpm)
1900
Compression ratio
1919.5:1
Cylinders
4, in-line
Cylinder head
Two-piece aluminium alloy with separate cam carrier
Cylinder block Compact thin-wall cast iron with separate cast aluminium ladder frame
Crankshaft
Forged steel with rolled fillet radii, eight counterweights
Intake manifold
Cast iron with integrated turbocharger
Valves per cylinder
4 (vertical)
Valve gear
DOHC
Included angle between valves
0 degrees
Valve sizes (mm)
Intake: 29.8

Exhaust: 25.8

Camshaft drive
Duplex chain with hydraulic tensioner
Camshafts
2, tubular steel
Pistons Lightweight aluminium silicon alloy with low-friction molybdenum coated skirts and pressure-balanced ring pack
Connecting rods Sinter-forged with fracture-split big ends and wedge-profile small ends
Engine management
32-bit Visteon Levanta with CAN-Bus
Fuel Injection
Direct, Bosch VP44 radial piston fuel pump with pilot injection
Turbocharger Allied Signal GT 20/17V with variable-geometry stator vanes and intercooler
Emission controls
Water-cooled EGR and oxidation catalyst
Emission level
European Stage III


2.5L FORD DURATEC V6 – 170 PS

Engine Data

Engine Type
2.5L 24V DOHC Petrol
Displacement (cc)
2498
Bore (mm)
81.7
Stroke (mm)
79.5
Fuel type, grade
Unleaded petrol, 95 (RON)
Max power (ISO kW/PS)
125 / 170
At engine speed (rpm)
6000
Max torque (ISO Nm)
220
Max BMEP (ISO kPa)
1087
At engine speed (rpm)
4250
Compression ratio
9.78:1
Cylinders 6 in 60-degree V, transversely mounted
Cylinder head Precision sand cast aluminium alloy (Cosworth process) with sintered valve guides and seats
Cylinder block Precision sand cast aluminium alloy (Cosworth process) with dry cast-iron cylinder liners, bedplate and structural oil pan
Crankshaft Forged steel with 50mm-diameter crankpins, 6 counterweights, four 63mm-diameter main bearings and damped front pulley. Separate die-cast aluminium alloy girdle
Intake Manifold Gravity die-cast aluminium with electrically-actuated port-throttle dual-phase induction ram system
Valves per cylinder
4
Valve gear Double lightweight hollow fabricated overhead camshafts (DOHC) with low-friction roller finger followers and stationary hydraulic lash adjusters
Included angle between valves
50 degrees
Valve Sizes (mm) Intake: 32.0

Exhaust: 26.0

Camshaft drive Silent inverted-tooth chain with hydraulic tensioner
Pistons Lightweight, short-skirt, silicon-aluminium alloy
Connecting rods Sinter-forged steel with fracture-split big ends
Engine management
32-bit Visteon Levanta with CAN-Bus
Fuel injection Sequential electronic fuel injection (SEFI) with top-fed low-inertia injectors
Ignition
Electronic distributorless
Emission controls Two close-coupled, closed-loop, three-way, light-off catalytic converters with twin heated oxygen sensors plus large main underfloor catalyst
Emission level
European Stage IV capable, with electronic on-board diagnostics (EOBD)


Transmissions
Transmission type – manual  Ford MTX-75 manual 5-speed with synchromesh on all ratios (including reverse) and revised cable-shift mechanism
Gear ratios

(by engine type)

Duratec HE
Duratorq DI
Duratec
1.8L

110 PS

1.8L

125 PS

2.0L

145 PS

2.0L TDI 90 PS
2.0L TDI

115 PS

2.5L

170 PS

5th

4th

3rd

2nd

1st

Reverse

Final Drive

0.81

1.03

1.45

2.14

3.67

3.45

3.82

0.81

1.03

1.45

2.14

3.42

3.46

4.06

0.81

1.03

1.45

2.14

3.42

3.46

4.06

0.71

0.92

1.26

2.05

3.80

3.45

3.41

0.71

0.92

1.26

2.05

3.80

3.45

3.56

0.77

1.03

1.45

2.14

3.42

3.46

3.82

Clutch
Hydraulically operated single-plate diaphragm spring
Clutch diameter (mm)
228
228
240
240
